AXONOMETRIC OF STEEL STRUCTURE

THE DESIGN OF THE KUNSTHALLE WAS PROGRAMMATICALLY DIVIDED INTO TWO MAIN TYPES OF SPACES: SINGLE HEIGHT AND DOUBLE HEIGHT. THE DOUBLE HEIGHT SPACES WERE MAINLY DEDICATED TO THE GALLERY SPACES AND THE SINGLE HEIGHT SPACES FOR ADMINISTRATIVE & OFFICE SPACES. THE STRUCTURAL GRID MADE UP OF I-BEAMS ALLOWED FOR THE FLOOR PLATES TO BE DESIGNED INDEPENDENTLY OF THE VERTICAL LOADS.

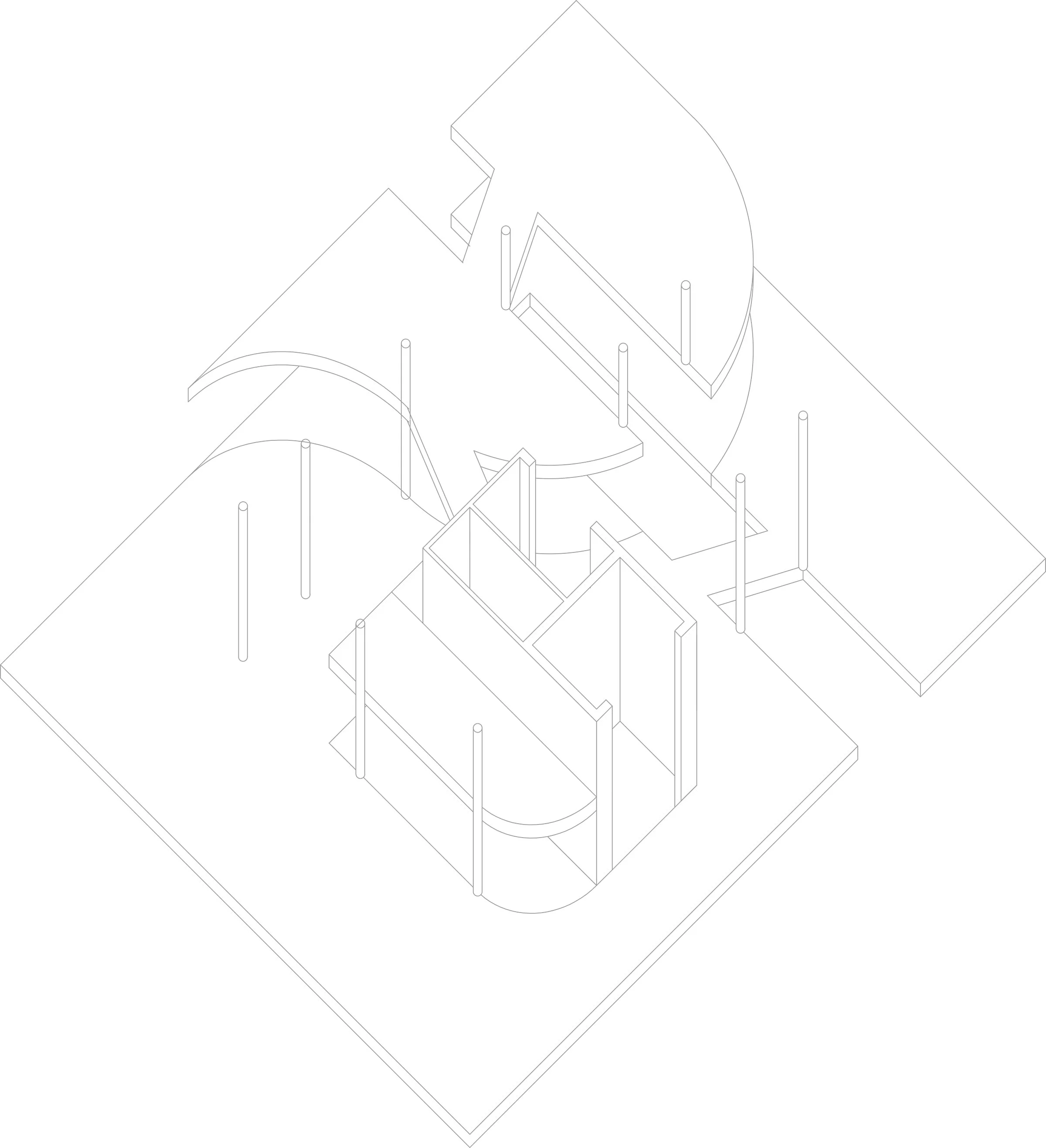

ISOLATED AXONOMETRIC

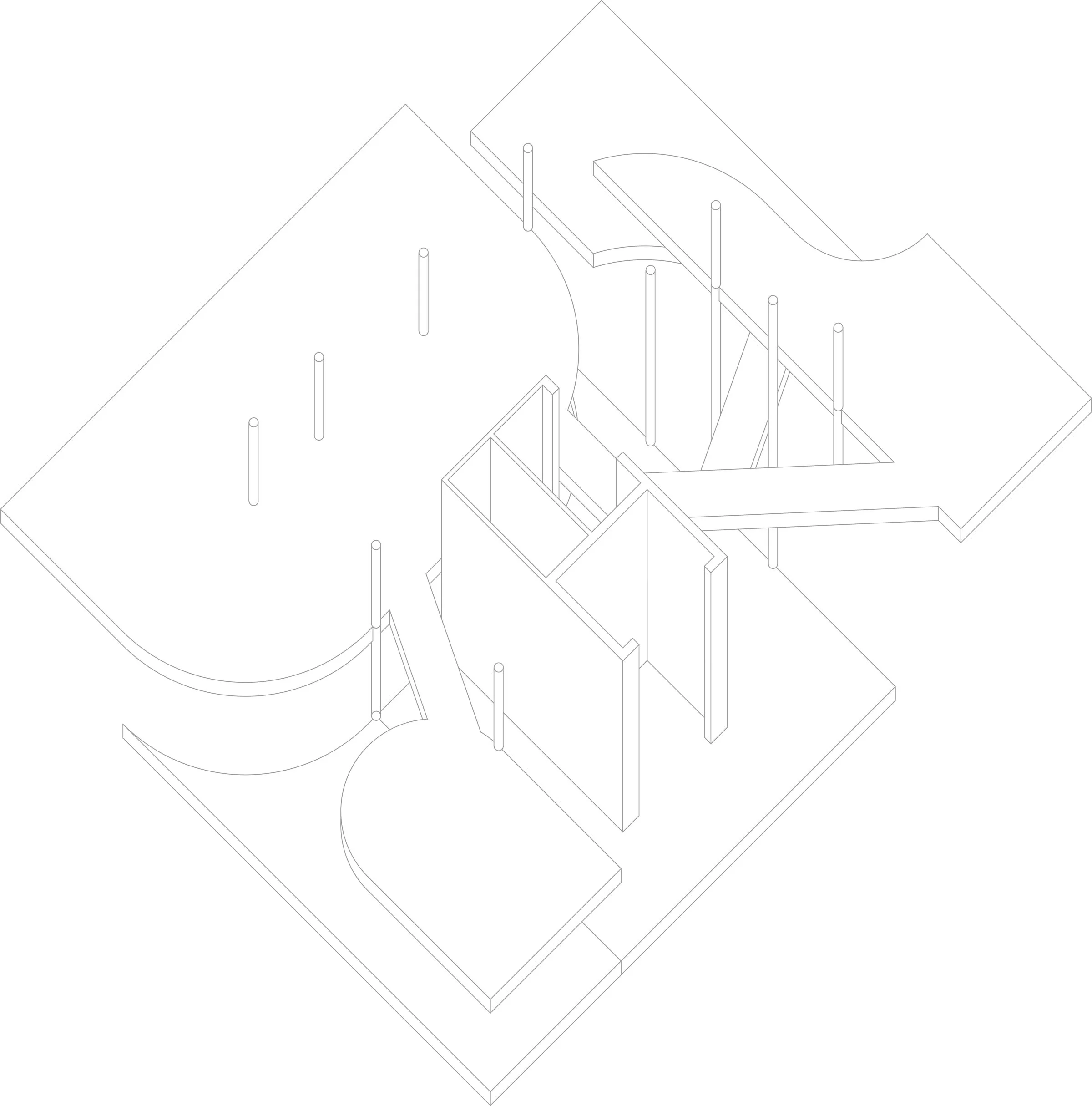

ISOLATED AXONOMETRIC

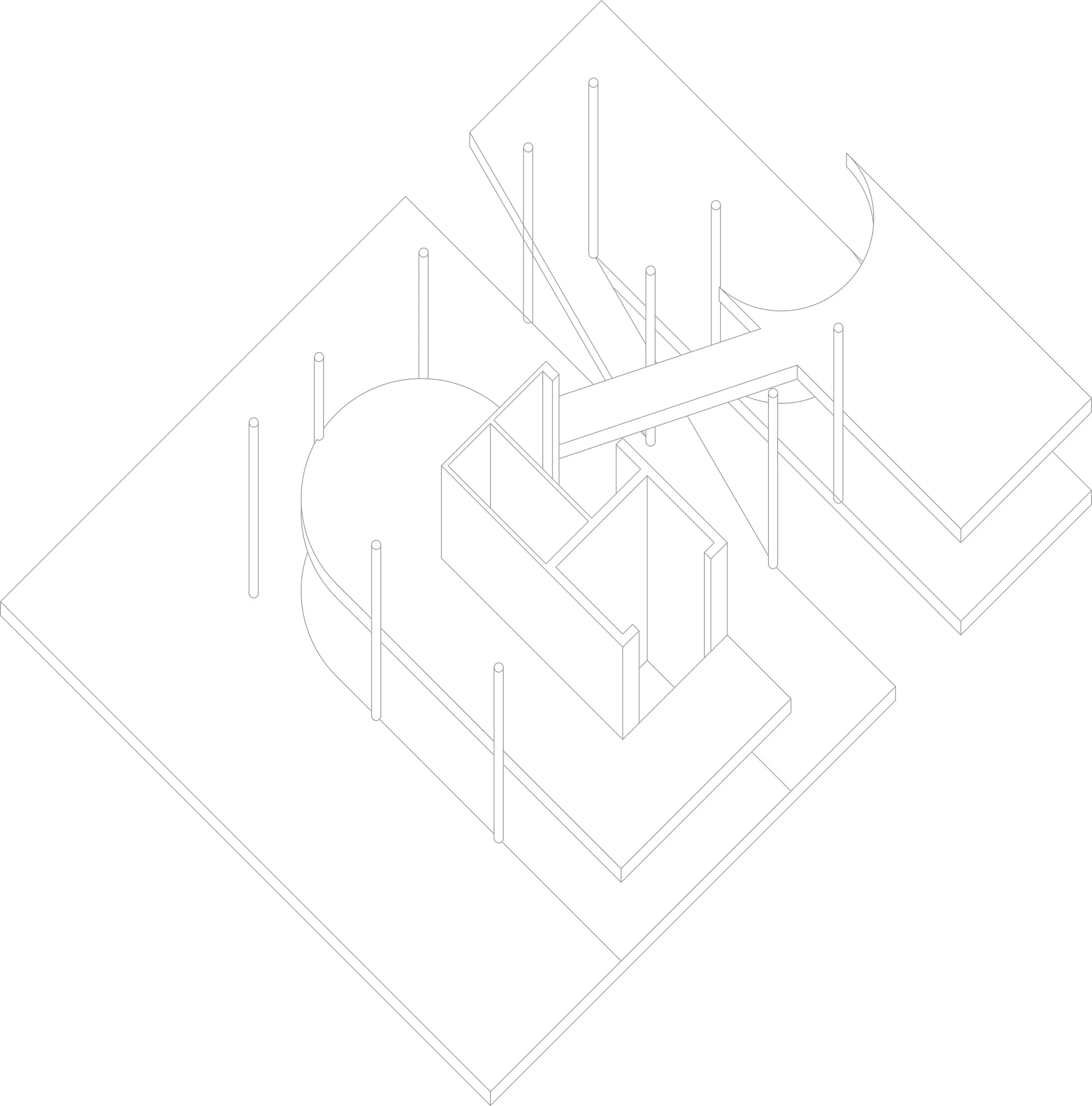

ISOLATED AXONOMETRIC

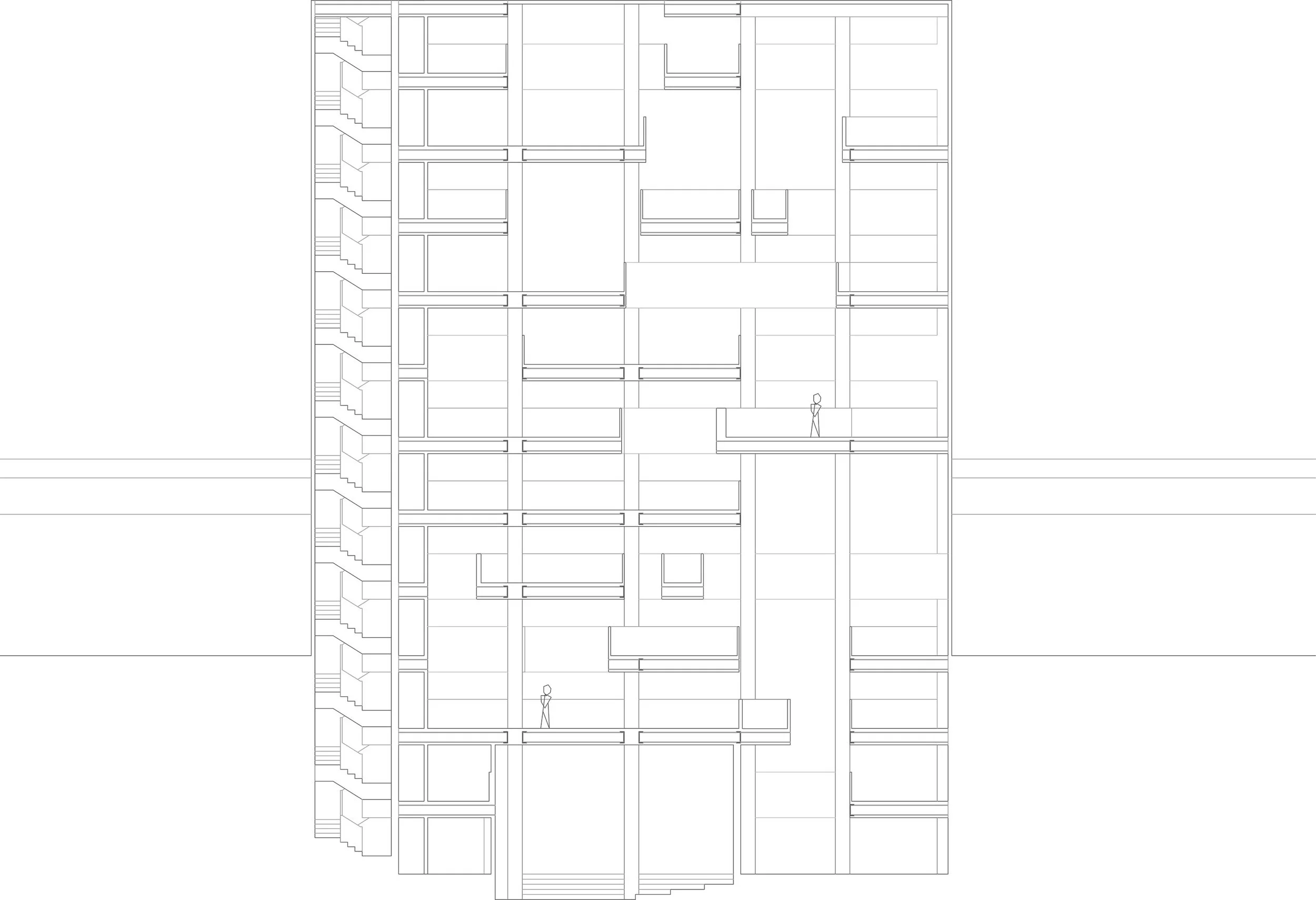

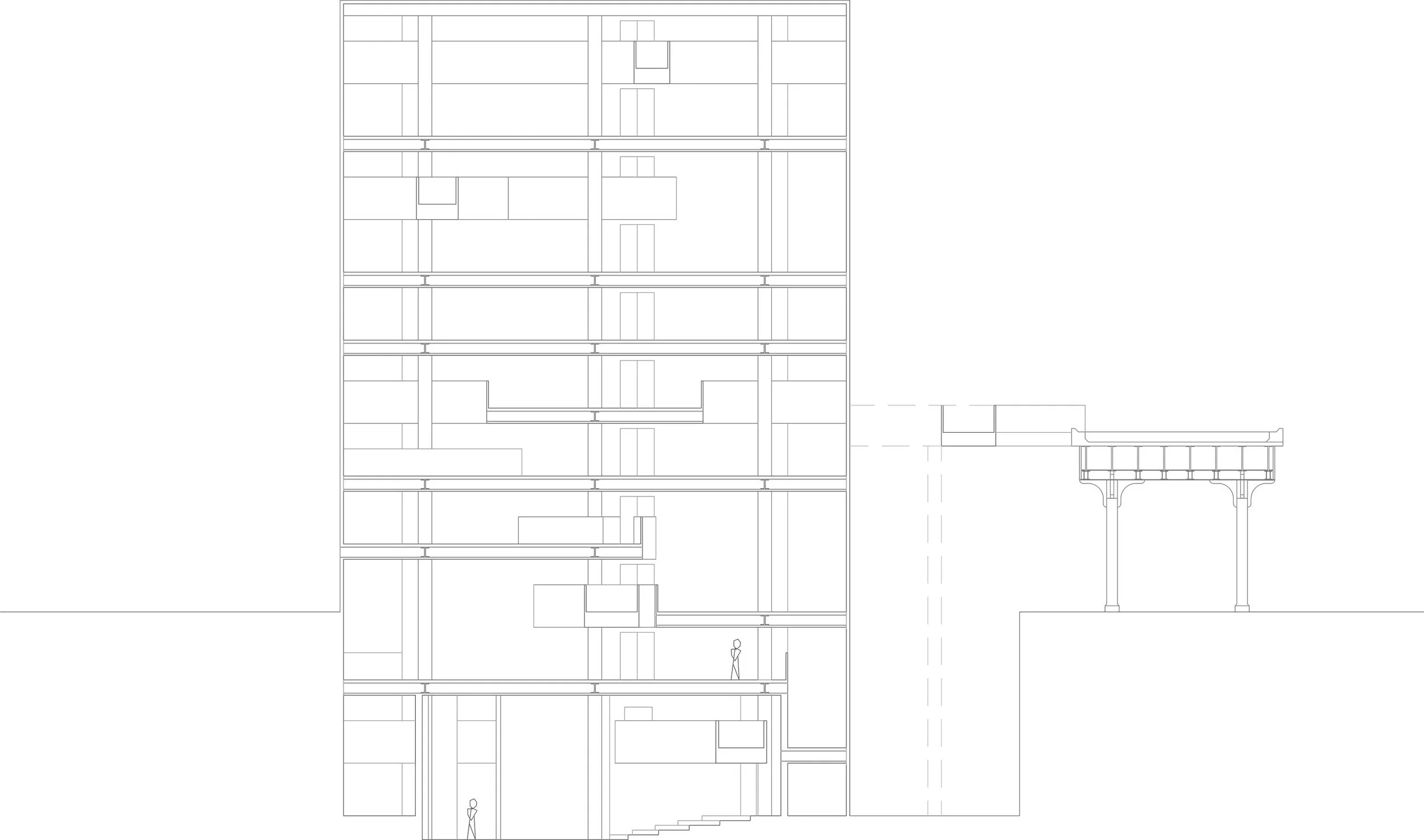

THIS SECTION SHOWS THE INDEPENDENT RELATIONSHIP OF THE FLOOR TO THE VERTICAL LOADS THROUGH THE USE OF C-CHANNELS AS THE MAIN HORIZONTAL STRUCTURAL MEMBERS.

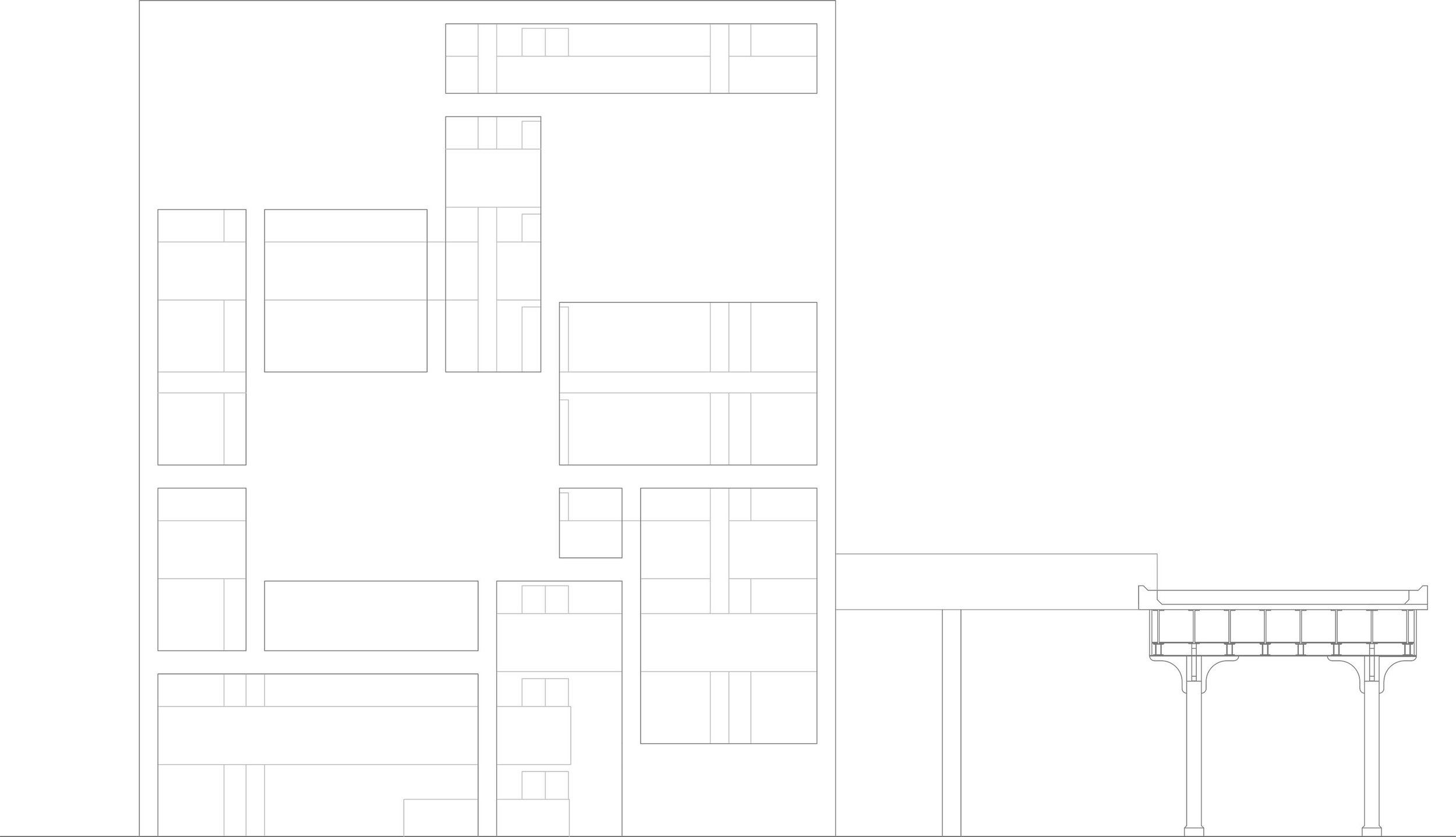

THE ELEVATION NATURALLY, THROUGH THE PROCESS OF DESIGN, BEGAN TO REVEAL THE INHABITATION OF THE BUILDNG WITH DIFFERENT PROGRAMMATIC REQUIREMENTS FOR NATURAL LIGHT AND PRIVACY.
